Pattern Making

We manufacture any size patterns in hardwood (Meranti), resins, or aluminium, either as loose patterns, single patterns mounted on boards or multiple patterns mounted on boards. We also manufacture polystyrene patterns for once-off castings.

All Ferrous Casting

Ferrous 3
Ferrous 2

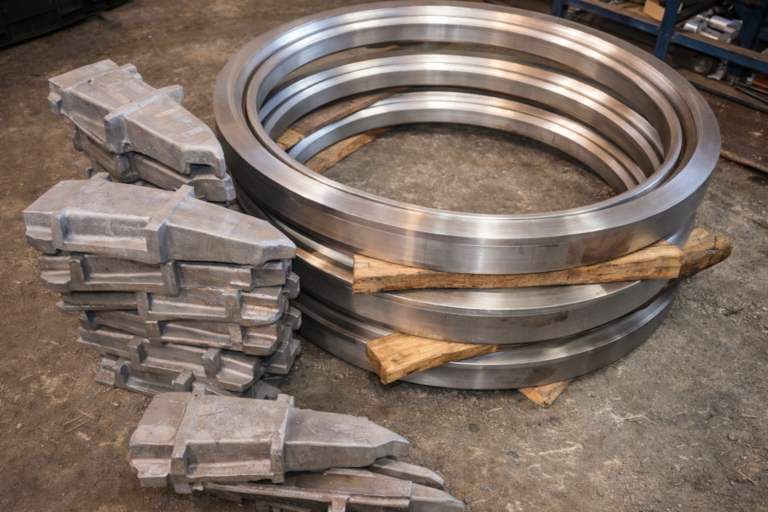

Ferrous 1
All Grades:
Cast Iron
SG Iron
ADI
Cast Steel
Manganese Steel
Stainless Steel
High Chrome Iron
Ni-Rest
Ni-Hard
Others on request

MATERIAL GROUPS

ALL GRADES

MAXIMUM MASS
per single casting
Cast Iron (BS1452)<3500kg
SG Iron (BS2789)<2500kg
Cast Steel (BS3100)<1000kg
Stainless Steel (BS3100)<1000kg
High Chrome iron & white iron (BS4844)<2000kg
NI-resist (BS3468)<3500kg
NI-hard<2000kg

Others on request

All Non-ferrous Casting

We deliver standard Brass or Bronze bushes within 3 to 5 workings days.

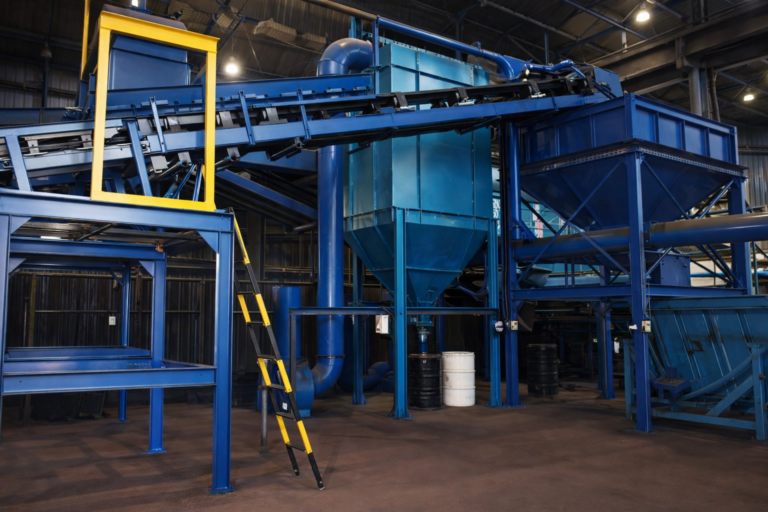

NON ferrous 1

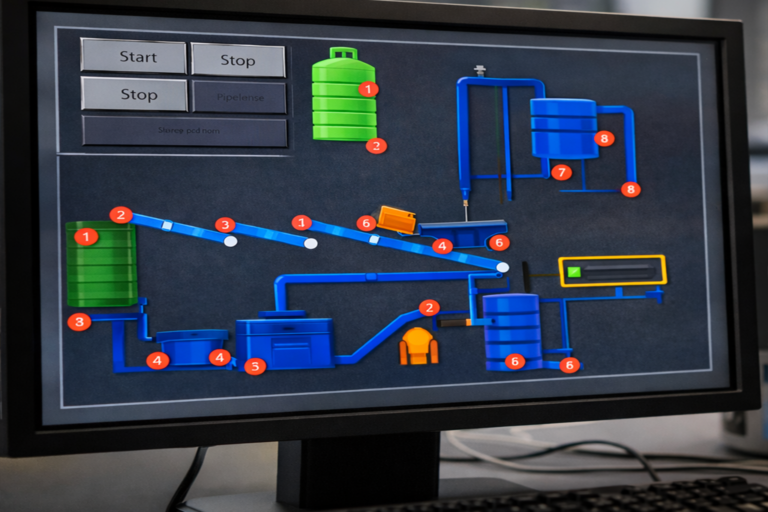

NON Ferrous 2

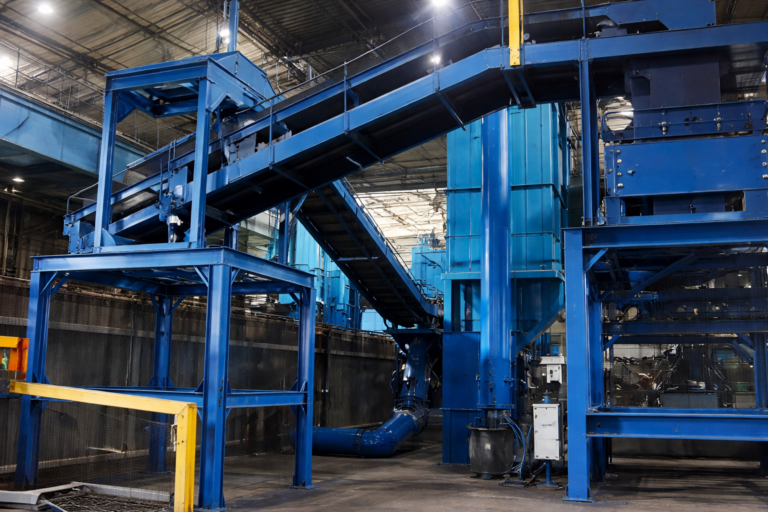

NON Ferrous 3
NON ferrous 4
Phosphor bronzes:

PB1
PB1 SAND CAST
PB2
LPB1
SAE 65+N1
CT1
PB10 SPEC/PB4

Gun metal:

SAE 660/RG7
SAE 62
GM1
G1/RG10
GM3/LG2
COMM GM
LG4

Leaded bronze:

LB1
LB2/SAE 64
LB3
LB4
LB5
ALLOY 3D/SAE 67

Alumm / MN Bronze:

CDA 954
AB1
AB2
HTB1
HTB3

Brass:

COMM. BRASS
60/40, DCB 3
SCB4
SCB6
SABS 477 BRASS
COPPER HC (BUSBAR)
ALL ALUM

MOST GRADES

MATERIALMAXIMUM MASS
Aluminium<150kg
Bronze<1000kg
Brass<1000kg
White Metal<150kg
Cu<150kg

Others on Request

Green Sand production casting - High Volumes

Clay-bonded sand (Greensand – Production Plant) is mainly used for high-volume production work.

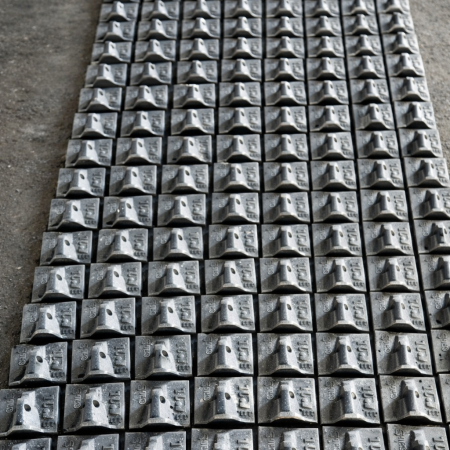

Porduction foundry 5

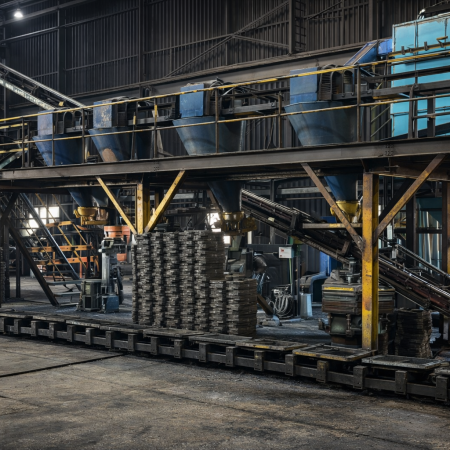

Porduction foundry 1

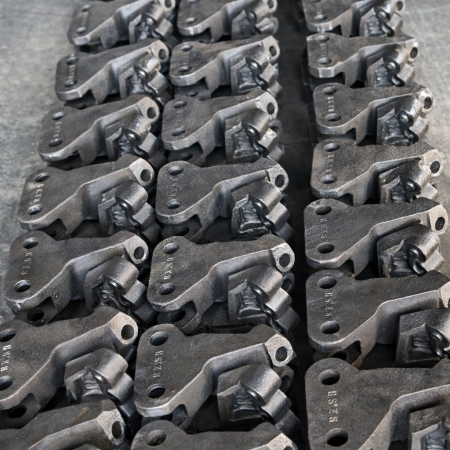

Porduction foundry 2

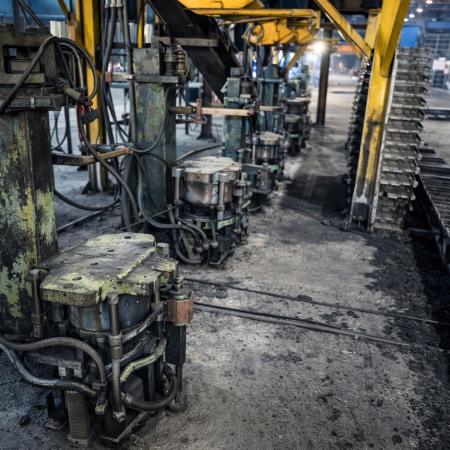

Porduction foundry 4
Porduction foundry 3

All Grades

  • Cast Iron
  • SG Iron
  • Cast Steel
  • Stainless Steel
  • High Chrome
  • Ni-Resist
  • Ni-Hard
  • Aluminium
  • Brass
  • Bronze
Green Sand Production Foundry

In our fully automated production foundry, we use standard 18”x14” and 20”x14” moulding boxes. Up to 65 sets of moulds can be made per hour.

  • 4 × jolt/squeeze moulding machines
  • Looped pallet conveyor system complete with drive (67 pallets)
Sand Preparation Plant

 Sand preparation plant comprising

  • Vibrating shake-out
  • Return sand belt conveyor
  • Rotary screen
  • Lumps chute
  • Storage silos (2 × 25 tons)
  • Measuring device
  • Sand mixer
  • Speed miller
  • Various sizes of moulding boxes

Machining

Machining of castings is available on request. These services are subcontracted to an approved engineering company.

Heat Treatment

Subcontracted to well known approved heat treaters.

Annealing, Normalizing,  Stress relieving,  water and Oil quenching
